Initial Setup for WUUK Wireless Cam Pro System (Y0410)

Thanks for purchasing the WUUK Wireless Cam pro. Please follow the steps below to connect the WUUK Wireless Cam Pro to WUUK Base Station.

Note: Running this wireless cam system requires a WUUK Base Station. (For more details about WUUK Base Station, kindly refer to: WUUK Base Station Supported Devices – Wuuk Labs Corp.

If you've already set up the Base Station supported system and want to add one more WUUK Wireless Cam Pro Add-on, you can pass through the first 2 steps and skip to the bottom to start the pairing process with Cam Pro Add-on.

Step 1. Get the WUUK app

( If you've already gotten the WUUK app, skip this step）

Download the WUUK app from the App Store (IOS devices) or Google Play (Android devices)

Step 2. Setting up the Base Station

( If you have already paired the Base Station and bought additional cam add-ons, skip this step and turn to Step 3)

Note: You have to go to the Phone setting and select the WUUK app to enable Local Network permission.

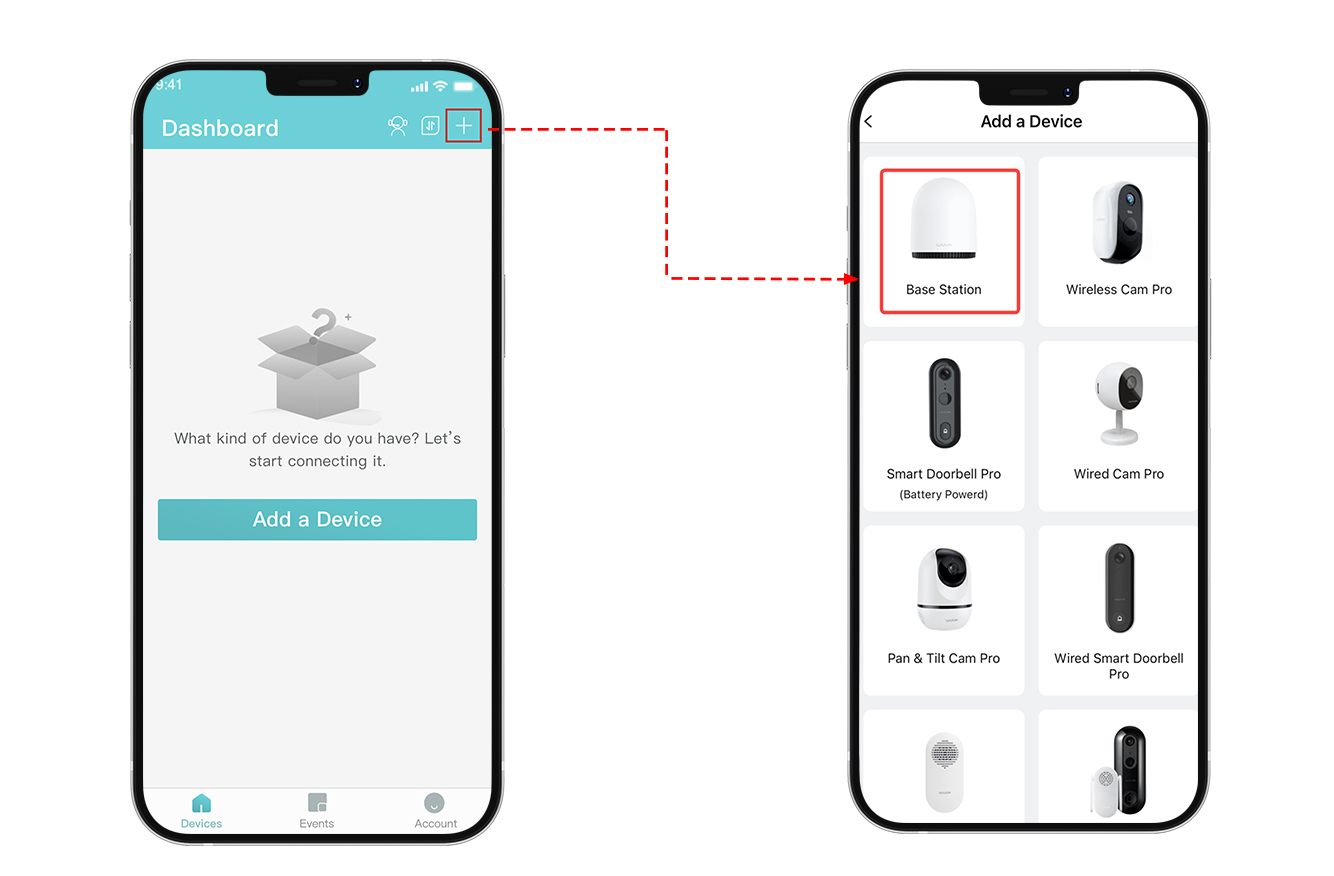

1. Go to your WUUK app and click "+" in the upper right corner of the Dashboard, select WUUK Base Station.

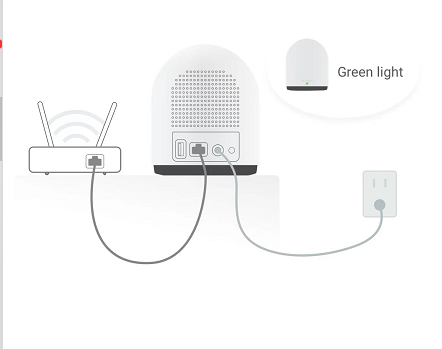

2. Make the Base Station connected to power and your router, wait for the light on it to turn green.

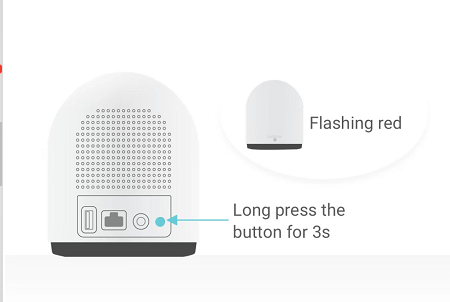

3. Put the Base Station into pairing mode, press and hold the button for more than 3 seconds, until the light flashes red.

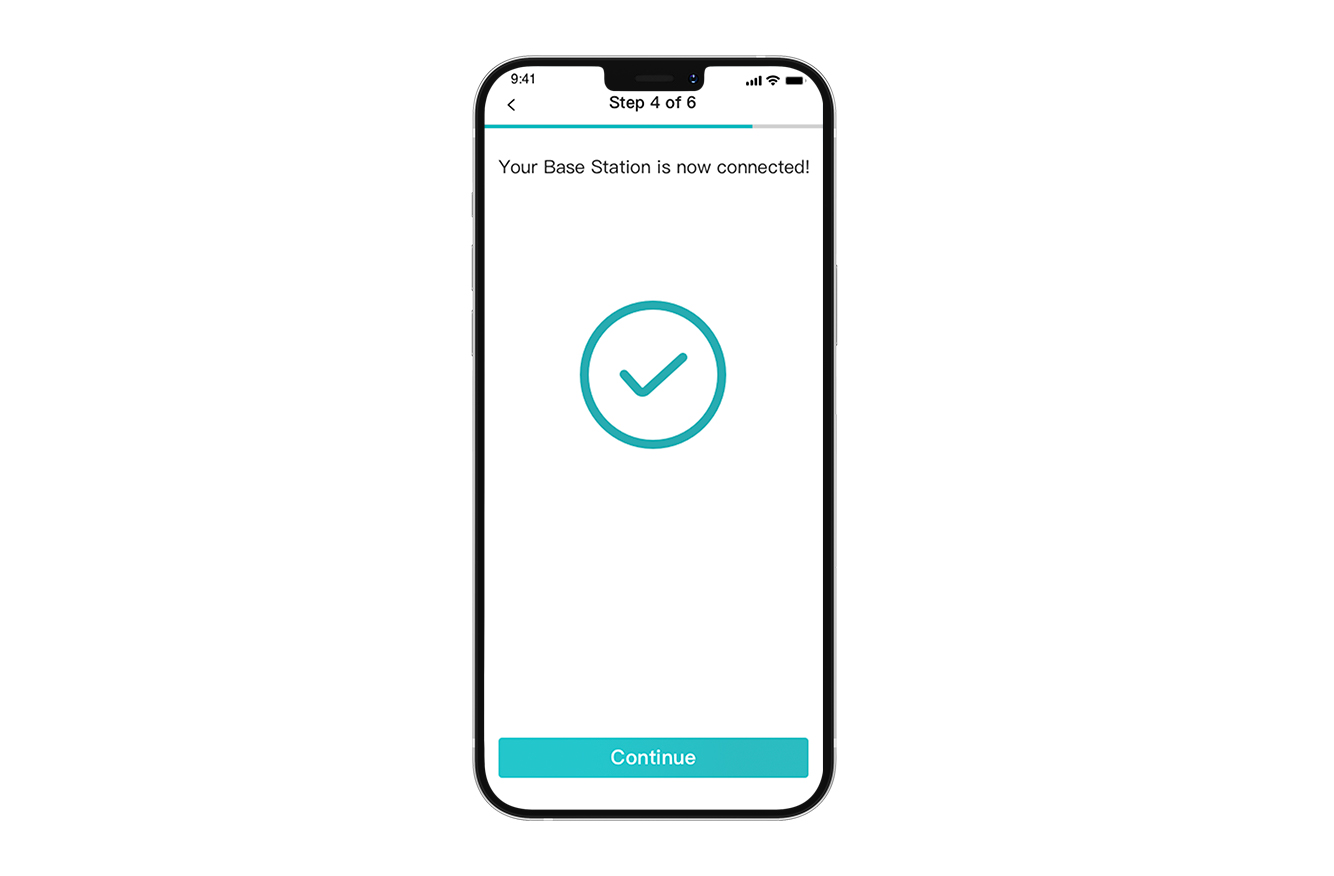

4. Connect your phone to WiFi, make sure your phone is connected to the same WiFi from the router your Base Station is connected to, then the Base Station will prompt "Pairing Successful" and you can see" Your Base Station is now connected!" on your WUUK app.

5. Continue and name your Base Station in your favor and name the device name.

Connect the Wireless Cam Pro Add-on with your Base Station

( If you don't choose to add a device right after you set up the Base Station or want to add one more add-on to your existing system, you could follow the instructions below to complete the pairing.)

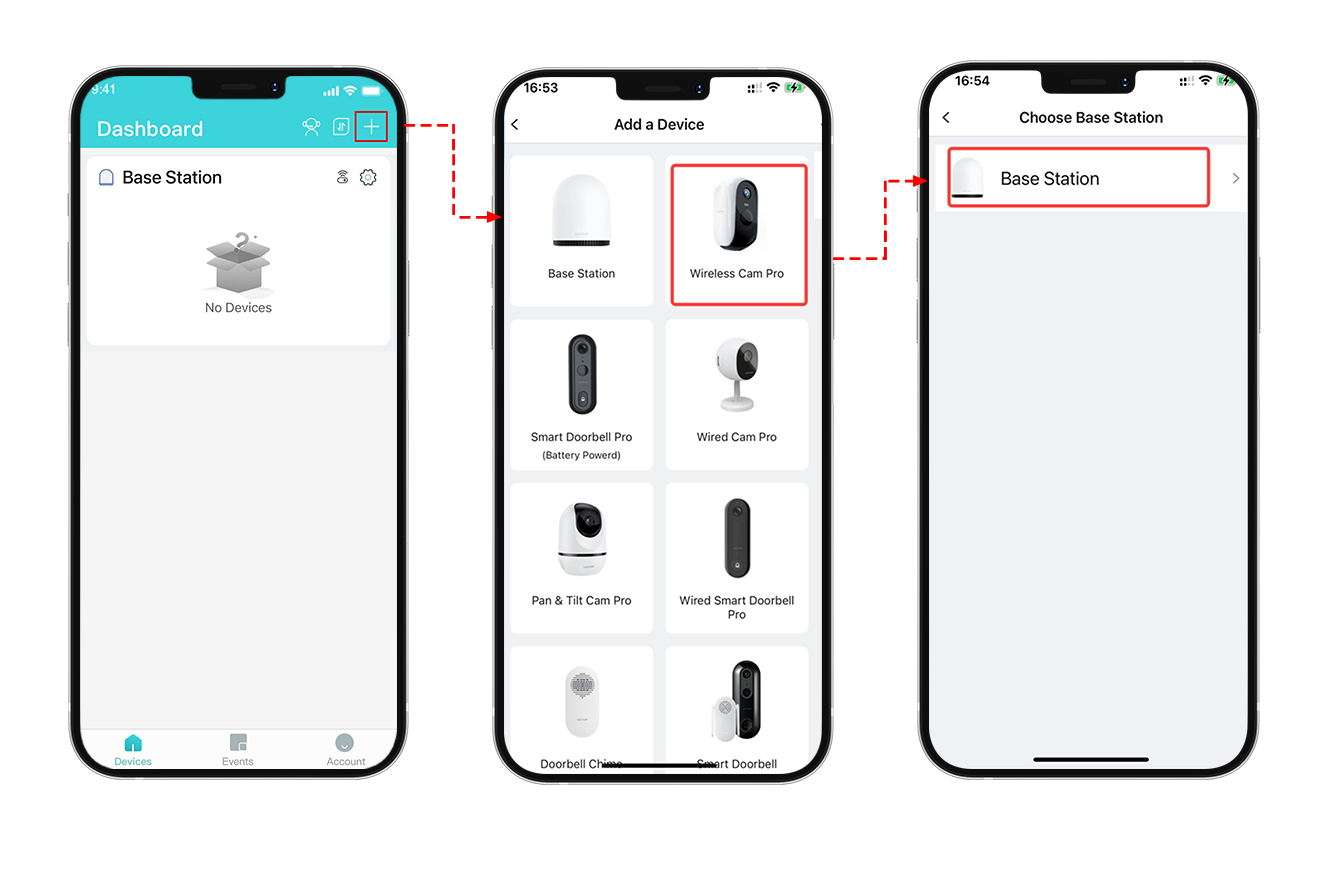

1. Go to your WUUK app and click "+" on the upper right corner of the Dashboard, select WUUK Wireless Cam Pro.

2. Choose the Base Station you want the camera to connect with.

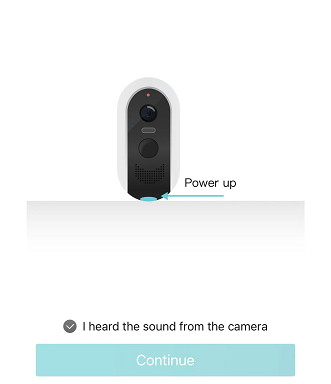

3. Keep the Base Station and the Camera within 2 meters. And press the button on the bottom of the camera for 3 seconds, and you will hear the sound "Hello, Wuuk" from the camera.

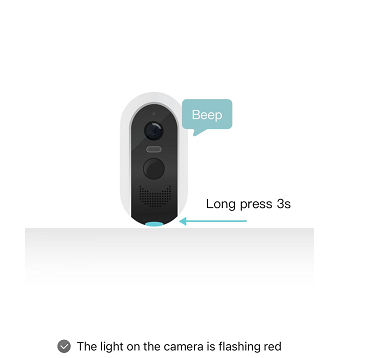

4. Press the button on the camera for 3 seconds until the light starts flashing red. The camera is in paring mode.

5. The camera will prompt "Pairing Successful" and you can see" The camera is now connected!" on your WUUK app.

6. Click Continue and name your camera in your favor. You can repeat the above steps to add other cams.
